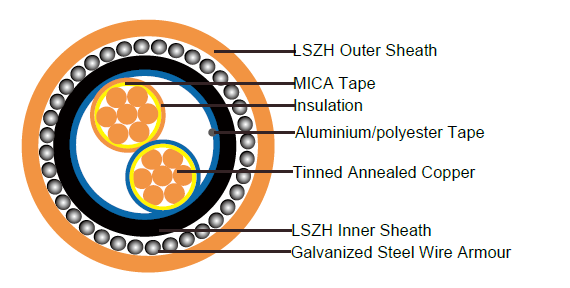

Fire Resistant & Armoured Fieldbus Cable
Construction:
Pair No. X Conductor Size |
1PX18AWG |
|---|---|
Conductor |
7 Strands tinned copper |
Fire Barrier |
MICA Tape |
Insulation |
XLPE |
Shielding |
Aluminium foil |
Drain Wire |
Tinned copper wire |
Inner Sheath |
LSZH |
Amour |
Galvanised steel wire |
Outer Sheath |
LSZH |
Nominal Overall Diameter |
17.5+/-2.0mm |
Approx. Weight |
385 KG/KM |
Core Color |
Blue&Orange, other color is available upon request. |
Sheath Color |
Orange,other color is available upon request. |
Electrical Data:
Characteristic Impedance @ 31.25KHz |
100 Ω ± 20Ω |
|
|---|---|---|
Conductor Resistance |
23.5 Ohm/km max. |
|
Test Voltage |
1.0KV |
|
Operate Voltage |
300V |
|
Mutual capacitance |
80 pF/m |
|
Max. Attenuation |
39KHz |
3.0dB/km |
Technical Data:
Min. Bending Radius |
10 x OD mm |
|---|---|
Operating Temp.Range, min. |
-40 °C |
Operating Temp.Range, max. |
+90 °C |
Fire Performance:
Circuit Integrity |
IEC 60331 |
|---|---|
flame Retardance (single vertical wire or cable test) |
Iec 60332-1-2; en 60332-1-2 |
Reduced fire Propagation (Vertically-mounted bundled wires & cable test) |
Iec 60332-3-24; en 60332-3-24 |
Halogen free |
Iec 60754-1; en 50267-2-1 |
no corrosive Gas emission |
Iec 60754-2; en 50267-2-2 |
Minimum smoke emission |
Iec 61034-2; en 61034-2 |
